In the quest of good SWR and Power Meter
Finally come to this solution : Compensated diode detector and OLED display.
Software optimized for accurate and fast response.
The prototype testing was surprisingly good. It beats Daiwa CN-801 in low power region. Since the pickup was designed for low power, it can not be used for power higher than -say- 20W.
Here is the circuit board for stand alone unit :
Work is still in progress. So, more stuff to be added later.
73
YB1NWP
Finally come to this solution : Compensated diode detector and OLED display.
Software optimized for accurate and fast response.
The prototype testing was surprisingly good. It beats Daiwa CN-801 in low power region. Since the pickup was designed for low power, it can not be used for power higher than -say- 20W.
 |

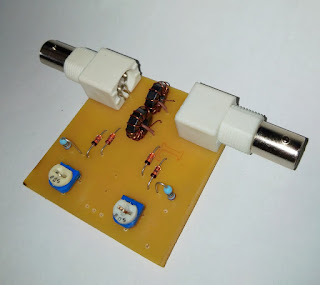

| Prototype RF pickup |
 |
| Initial Testing Setup |
Here is the circuit board for stand alone unit :
Work is still in progress. So, more stuff to be added later.
73
YB1NWP
